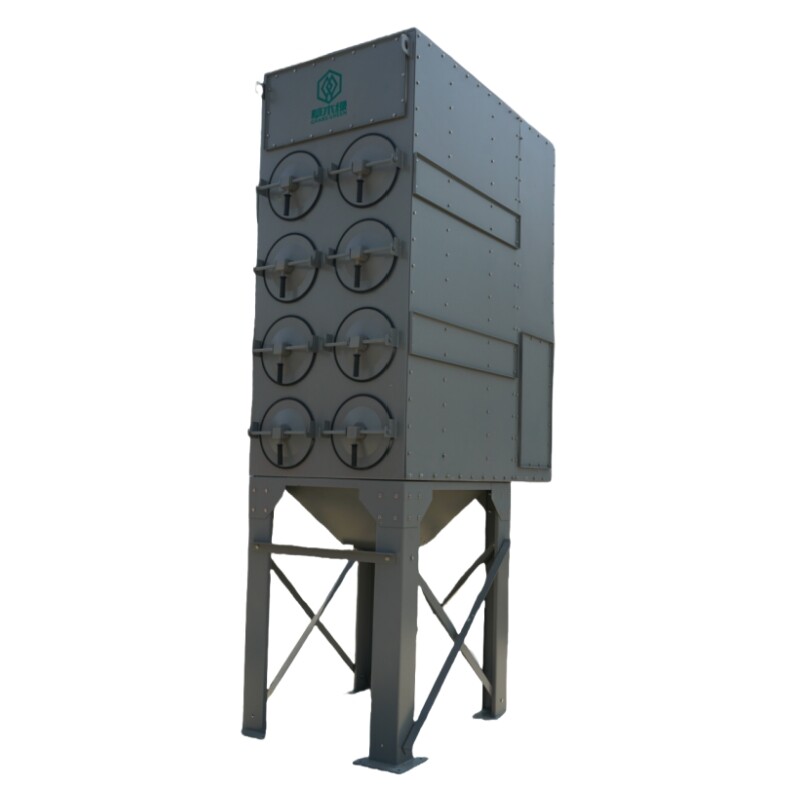

GrassGreen FCF cartridge dust collector is a downflow dust removal equipment using pulse injection method. It is ideal for all your dust and fume collection needs, and its application range can cover grinding, welding, polishing, grinding, smelting, bulk powder raw material handling and other fields. It can cope with high transportation and installation costs, as well as various processing conditions.

We can design optimal smoke capture devices and duct systems according to your on-site working conditions.

Compared to dust collectors produced by other factories, our units are mainly assembled using bolt connections, requiring only a small amount of welding for on-site installation, reducing the workload of on-site installation and significantly lowering the requirements for workers' abilities.

Applications:

It is suitable for various dust control conditions. Common applications include centralized control of welding smoke, plasma and laser cutting smoke control, centralized control of grinding and polishing dust, centralized control of new material processing dust, centralized control of part of wood processing dust, and centralized control of renewable resource processing dust. Management, crusher mixer dust control, conveyor dust control, etc.

Equipment advantages:

1. Unique sinking flow field design is more effective in removing dust from cartridge filters;

2. Modular design:The structure of the dust collector adopts a modular design, which can be expanded and extended at will according to the site conditions, and has excellent scalability.

3. Large air volume filter cartridge greatly reduces the size and floor space of the dust collector;

4. Save operating costs：The equipment has low operating resistance, effectively saving energy consumption of the dust removal system;

5. Maintenance and replacement of filter cartridges are simple, fast and safe, shortening downtime.

Specifications:

1. FCF stands for: Split Cartridge Dust Collector Series

2. FCF12-3: The first group of numbers represents the number of filter cartridges in a module, 12

3. The second set of numbers represents the number of modules to be spliced

4. Filter cartridge material: polyester coating/wood pulp

5. Cleaning method: pulse cleaning

6. Differential pressure gauge: TD2000 0-3KPa

7. Air regulating valve: Festo type 4-point interface

8. Warranty period: 1 year (excluding consumables replacement)

9. Production cycle: 25-35 working days
